In today’s booming construction industry, as the core production facility, the design quality of concrete batching plants directly affects engineering efficiency, cost control, and environmental compliance. To meet the growing demand for concrete while adhering to the principles of sustainable development, the scientific design and layout of concrete batching plants must be scientifically advanced. How do you scientifically design the layout of concrete batch plants? Next, we will delve into the design principles, technological innovations, and industry trends of AGICO concrete mixing plants, providing practical references for you.
Point 1: Design of AGICO Concrete Batching Plant
1. Production and modular design
- Firstly, it is important to accurately calculate the production demand, such as determining the host model (HZS60/HZS120) and batching system capacity based on the project scale (e.g., 60m ³/h) to avoid resource waste.
- Modular layout: Adopting a standardized component design, it is easy to install, expand, and transport quickly, especially suitable for EPC projects.
- Case: A Southeast Asian highway project adopted a modular HZS90 concrete batching plant, which shortened the construction period by 30%.
2. Energy efficiency optimization and cost control
- Energy saving equipment selection: Choosing a variable frequency drive mixing host (such as the JS2000 twin shaft mixer) can reduce energy consumption by 15%-20 %.
- Aggregate pre-mixing technology: By pre-storing ingredients in a warehouse, the waiting time for ingredients is reduced, and the batch cycle efficiency is improved.
- Data support: The optimized material conveying path can reduce the production cost of each cubic meter of concrete by about $2~5.
3. Environmental compliance design
- Dust control: Install a pulse dust removal system at the feeding port and mixing tank to ensure that particle emissions are ≤ 20mg/m³ (in compliance with GB 4915 standard).
- Wastewater recycling system: equipped with three-level sedimentation tanks and sand and gravel separators to achieve over 90% water resource recycling.
- Policy relevance: The EU CE certification requires that the noise level of mixing plants be below 75dB (A), and targeted noise barriers need to be designed.
Point 2: AGICO Main System Design
1. Aggregate supply system
Accurate batching scheme: using 4-6 stacked aggregate storage hoppers, combined with high-precision sensors (error ≤± 1%).
Anti segregation design: The inclined belt conveyor (angle ≤ 18 °) is combined with a guide plate to reduce aggregate grading.
2. Mixer models
Twin shaft mixer vs single-shaft mixer: The twin shaft mixer is more suitable for high-strength concrete production, with mixing time shortened to 30-45 seconds.
Wear-resistant design: The mixing blades are made of high chromium alloy and tungsten carbide coating, which extends the service life to over 100000 cans.
3. Intelligent control system
PLC+SCADA integration: realizing formula management, fault diagnosis, and remote monitoring.
AI algorithm optimization: Predicting equipment maintenance cycles based on historical data, reducing the risk of unexpected downtime by 70%.
Point 3: AGICO Global Solutions
1. Extreme environmental adaptability
High temperature areas: Add a hydraulic oil cooling system to control the working temperature below 45 ℃.
High cold regions: Install aggregate preheating bins and hot water supply systems to prevent concrete from freezing.
2. Multi-standard compatibility
Electrical system: meets both IEC and local certifications.
Structural safety: Seismic zone projects must undergo seismic analysis by ASCE 7-16 standards.
3. Localized service support
Language interface: The control system supports switching between Chinese/English/Russian/Arabic.
Universality of accessories: Key components (such as sensors and pneumatic components) are sourced from international brands, facilitating global procurement.
Point 4: AGICO Innovation
1. Carbon reduction technology
Alternative fuel application: Biodiesel drives mixer trucks, reducing CO ₂ emissions by 30%.
Solid waste resource utilization: Utilizing recycled aggregates from construction waste (accounting for up to 30%) requires adjusting the mix proportion algorithm.
2. Digital twin technology
Virtual debugging: By simulating equipment operation through 3D modeling, on-site debugging time can be reduced by 50%.
Predictive maintenance: Use IoT sensors to monitor the vibration spectrum of bearings and provide a 2-week warning for faults.
3. Unmanned production
Automatic feeding system: AGV car + RFID tag achieves precise replenishment of the aggregate bin.
AI quality inspection: Real-time analysis of slump based on image recognition, with an error of ≤ 5mm.
Point 5: AGICO: Professional Manufacturer Team
- Engineering experience: Participated in 5 international projects of the same type.
- Technical certification: ISO 9001 quality management system, EN 1090 steel structure certification.

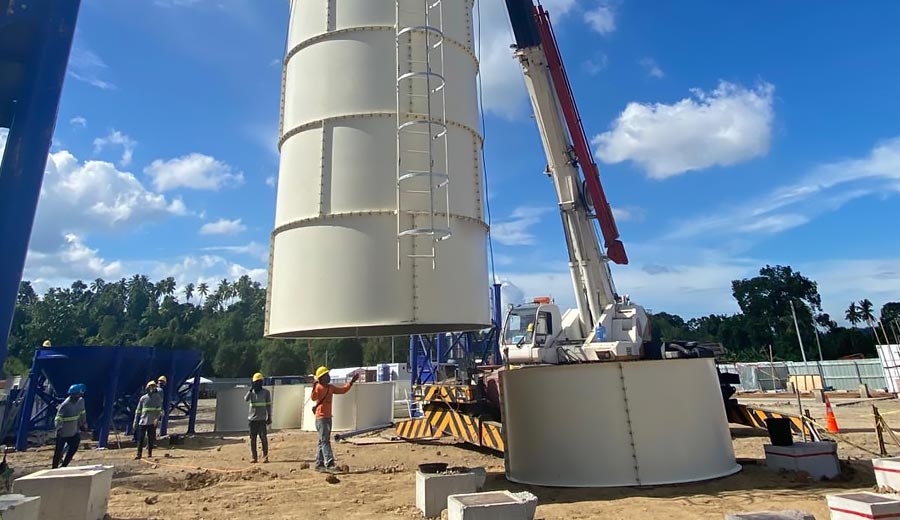

- After-sales service: Provide remote diagnosis and comprehensive pre-sales, after-sales, and in-sales services.
The design of high-quality concrete batching plants requires a precise balance between efficiency, cost, and sustainability. With the upgrading of intelligence and environmental regulations, adopting modular, low-energy, and highly compatible design solutions will become the core advantage of global market competition. If you need customized concrete batching plant design solutions, please contact our engineering team. We will provide service support based on 20 years of industry experience. Welcome to consult us.
