Batching Plant Screw Conveyor
- 100% Safety Performance Pre-tested
- High Quality
- High Security
- High Efficiency
- High Wear Resistance

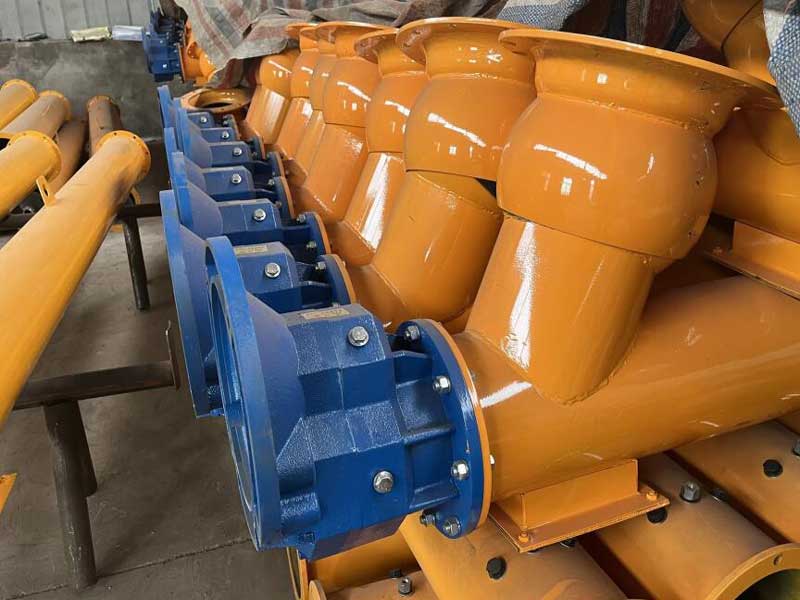

screw conveyor for sale
A batching plant screw conveyor is a widely used piece of equipment in concrete batching plants. Its job is to transport cement from the cement silo to the concrete mixer or to transport materials from the concrete silo to the concrete batching machine. Batching plant screw conveyors have become essential equipment for large and small concrete batch plants, playing a significant role in the batching plant.
Main Function: Transport cement, fly ash, or other powders
Application: Large, medium-scale, and small concrete batch plants
AGICO specializes in designing screw conveyors with over 20 years of experience. AGICO equipment is widely praised in the industry and is the preferred choice for customers. AGICO screw conveyors not only have high conveying efficiency but are also widely used. Our equipment can transport various powders in a horizontal, inclined, or combined manner. In terms of concrete batching plants, we can provide stationary, mobile, and other types of batch plants. We also offer a wide range of facility services, from receiving equipment installation to subsequent maintenance and repair services. If you have special needs, we can customize them for you. We have the factory prices, the most complete services, and the most advanced equipment. Come and consult us now.
Product Atlas of screw conveyor
Product Advantages Of Screw Conveyor
Easy to install
Our product has undergone professional research and designed a convenient way for customers to install it quickly in a short time, allowing them to install and use it quickly after receiving the goods.
Easy to disassemble and move
Customers can choose different connection methods for installation, and disassembly is also convenient, allowing for quick transportation from the construction site to another construction site.
High wear resistance
AGICO screw conveyor adopts high-quality steel materials, which are sturdy, wear-resistant, moisture-proof, and shockproof. The bearings are also made of wear-resistant materials and alloys, which not only have the characteristics of wear resistance but also have good sealing performance, so there is no need to worry about leaking dust materials.
High efficiency
Our equipment has been professionally designed to ensure efficient conveying. We use high-quality motors that can achieve efficient and fast conveying and long-distance continuous conveying. Before leaving the factory, our equipment undergoes 100% assembly and safety performance testing. We guarantee that you receive products of good quality.
Long lifespan
AGICO equipment has been professionally designed to reduce noise by twisting the reducer, and we have also increased the thickness of the blades and pipe walls, effectively extending the service life of the screw conveyor.
Feeding and discharge port
There are various types of feed and discharge ports, and we can design special types such as cylindrical, conical, square, rectangular, etc., which can be professionally customized for you.
High security
Our equipment is guaranteed to be of high quality and produced strictly according to standards, ensuring safe and reliable operation.
Low maintenance costs
Aluminum cast intermediate suspension bearings with self-lubricating sliding bushings, reducing your maintenance costs.
Working Principle Of Batching Plant Screw Conveyor
The main components of the AGICO screw conveyor include a feed port, discharge port, conveying pipe, reducer, motor, screw spindle, tail bearing, middle suspension shaft, outer cylinder, etc. The working principle of our equipment is as follows:
Load materials such as cement. Load cement from the feed port, and then the screw blades inside the pipeline begin to rotate. The cement is then rotated into the conveyor and begins to be transported.
Transport cement. The screw blades continue to rotate, conveying cement to the discharge port. During this process, the screw blades continuously press on the cement to ensure smooth and uniform transportation, thereby improving conveying efficiency.
Unload the cement. After the cement reaches the discharge port, the conveyor will unload the cement. There are many options for the discharge port, and it does not necessarily have to be at the end of the pipeline. Customers can choose the location of the discharge port according to their needs.
During the conveying process, the batching plant screw conveyor continuously works, and each component structure operates in an orderly manner. The above process will be repeated until the cement is conveyed completely.
Parameter of Batching Plant Screw Conveyor
| Model | AG100 | AG120 | AG140 | AG160 | AG200 | AG250 | AG300 | AG400 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Shell tube diameter (mm) | Φ114 | Φ133 | Φ168 | Φ194 | Φ219 | Φ273 | Φ325 | Φ402 | ||
| Angle (α) | 0°～60° | |||||||||
| Conveying capacity (m) | 8 | 10 | 12 | 14 | 15 | 18 | 20 | 25 | ||
| Conveying capacity (t/h) | 6 | 12 | 17 | 28 | 45 | 70 | 130 | 150 | ||
| Moter | Model | L≤7 | Y90S-4 | Y100L1-4 | Y100L2-4 | Y132S-4 | Y132M-4 | Y160M-6 | Y160L-4 Y180M-4 | Y180L-4 |
| Power(KW) | 1.1 | 2.2 | 3 | 5.5 | 7.5 | 11 | 15-18.5 | 22 | ||
| Model | L＞7 | Y100L1-4 | Y100L2-4 | Y112M-4 | Y132M-4 | Y160M-6 | Y160L-4 Y180M-4 | Y180M-4 Y180L-4 | YH200L-4 | |
| Power(KW) | 2.2 | 3 | 4 | 7.5 | 11 | 15 | 18.5-22 | 20-30 | ||
Compare with Other Conveyor Systems
| Belt conveyor | Bucket Elevator | Pneumatic Conveyor | VS | AGICO Batching plant screw conveyor |
|---|---|---|---|---|
| ×High risk of material blockage. | √ The risk of blockage is very low。 | |||
| ×Easy to overflow materials. | √ Will not cause material overflow | |||
| ×Easy to shut down and high maintenance costs. | √ Will not shut down, low maintenance cost | |||
| ×High power consumption and energy consumption. | √ Higher energy efficiency, with less electricity consumption for long-distance transmission | |||
Specific Application of Batching Plant Screw Conveyor
Batching plant screw conveyors play an important role in concrete batching plants, as they can not only transport cement, but also aggregates, fly ash, and other additives.
- Cement transportation: Batching plant screw conveyors transport cement from cement silos to concrete mixers, which is the most common application method.
- Aggregate transportation: Aggregates are output from the aggregate silo and then input into the concrete mixer of the mixing plant through the screw conveyor. We can customize the size according to the specific capacity of the aggregates.
- Fly ash transportation: Fly ash is a supplementary material for concrete, and its fineness is usually fine. We can design a screw conveyor according to the specific characteristics of fly ash, which can transport fly ash from the storage bin to the concrete mixer.
- Additive transportation: The screw conveyor can also be responsible for transporting materials such as water and additives from the storage bin to the mixer. We will also design the screw conveyor based on the characteristics of the additives.
If your construction project requires a screw conveyor that can be used for multiple purposes, please come and consult us. We provide you with the factory price and the most satisfied type.
Why Choose AGICO
- We can customize the design according to your precise needs. The customer’s requirements are our pursuit. You can rest assured to entrust your requirements to us, and we will design the most suitable solution for you. We are the driving force behind your successful project. Believe in AGICO, believe in our abilities.
- We have nearly 20 years of industry experience. We not only sell screw conveyors but also cement silos, concrete silos, aggregate bins, mixers, and other equipment. In terms of concrete batching plants, we can provide stationary, portable, and other types of batch plants. We also provide a wide range of services, from receiving equipment installation to subsequent maintenance and repair services. Our services can keep your entire work project at the best working level and bring you the best benefits.
- If you have any further questions, please feel free to consult us at any time. We have the best service and types of equipment, and we will become the best partner. Come and consult us now.
