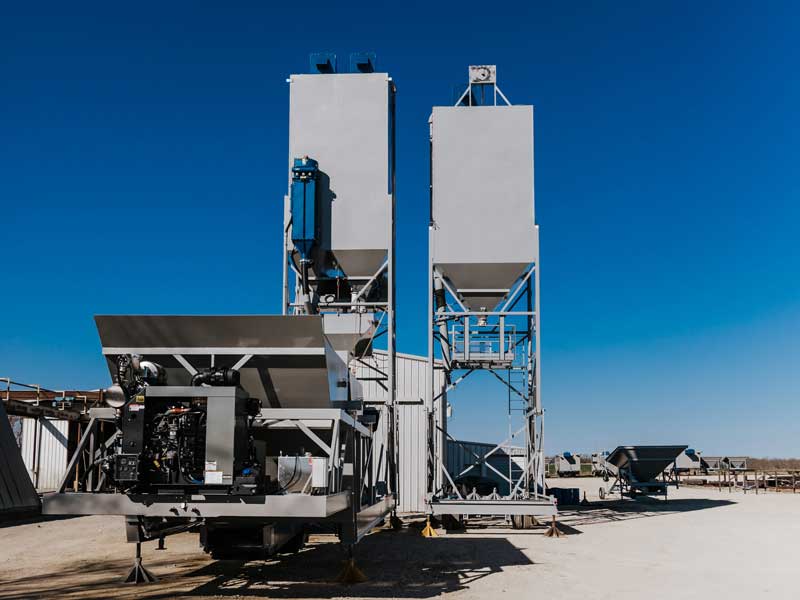

Portable Ready Mix Plant
Concrete batching plant supplier
CAPACITY: 25m³/h~120m³/h
MODELS: AG-YHZS25~AG-YHZS120
COST: $25,000 ~ $150,000
Portable Ready Mix Plant for sale -- Customized your Projects!
A portable ready mix plant is a type of concrete production equipment that can be quickly moved and disassembled for convenient use. Unlike traditional stationary concrete batching plants, this system integrates batching, mixing, conveying, weighing, and control systems on an integral or modular chassis, allowing for quick installation and commissioning. It is very suitable for projects with short cycles, multiple locations, and high mobility requirements.
As a well-known one-stop supplier of concrete mixing plants in China, AGICO leads the way in product research and development, manufacturing standards, and international service capabilities. Welcome to request a quote from us. We offer free customized plans.
mini RMC plant
medium sized RMC plant
Large scale RMC plant
hot-sale models of Portable Ready Mix Plant
Advantages of Portable Ready Mix Plant
Modular integrated design
AGICO concrete mixing plant integrates the functions of mixing, conveying, batching, and control systems. It does not require a foundation and can be directly installed on flat ground. It is equipped with a trailer chassis for road transportation and can be quickly relocated.
High-precision measurement
AGICO is equipped with an independent weighing hopper, with an error of ≤±1%, and dynamic automatic compensation technology to ensure consistent concrete quality.
PLC touch screen interface
The AGICO concrete mixing plant supports fully automatic, semi-automatic and manual modes, and can monitor production data and issue fault alarms in real time. It also features remote operation and maintenance functions.
High-efficiency mixer
AGICO mixers come in various types to choose from. You can select the twin shaft forced mixer (JS500–JS2000 series), which ensures uniform mixing, quick discharge, and adaptability to multiple ratios.
dust removal
The AGICO mixing plant is equipped with a high-efficiency bag filter, with an emission standard lower than 50 mg/m³. The noise reduction and dust prevention structure is optimized to meet the requirements of green construction.
Additional equipment delivery
We can provide additional configurations, such as adding admixture weighing systems, installing ice water or heating systems, and offering optional automatic lubrication and remote monitoring modules.
Specification of Portable Ready Mix Plant
| Model | AG-YHZS25 | AG-YHZS35 | AG-YHZS50 | AG-YHZS75 | AG-YHZS90 | AG-YHZS100 |
|---|---|---|---|---|---|---|
| Capacity | 25m3/h | 35m3/h | 50m3/h | 75m3/h | 90m3/h | 100m3/h |
| Mixing system | Twin-shaft concrete mixer | |||||
| Aggregate feeder | Bucket (Skip hopper) | |||||
| Discharging height | 1500-3800mm | 3800mm | 4000mm | |||
| After-sale service | Erection & commissioning, operator training | |||||
| Warranty | 12 months after erection | |||||
| Concrete mixer | JS500 | JS750 | JS1000 | JS1500 | JS2000 | JS2250 |
| Discharging volume | 500L | 750L | 1000L | 1500L | 2000L | 2250L |
| Charging volume | 800L | 1200L | 1600L | 2400L | 2800L | 3200L |
| Mixing cycle | 72s | 72s | 72s | 72s | 72s | 72s |
| Max. mixing size | 80/60mm | 80/60mm | 80/60mm | 80/60mm | 80/60mm | 80/60mm |
| Aggregate batching machine | PLD800 | PLD1200 | PLD1600 | PLD2400 | PLD2800 | PLD3200 |
| Storage bins quantity | 2 or 3 or 4 sorts | 3 or 4 sorts | 3 or 4 sorts | 3 or 4 sorts | 3 or 4 sorts | 3 or 4 sorts |
| Aggregate scale hopper | 800L | 1200L | 1600L | 2400L | 2800L | 3200L |
| Feeding height of the batching machine | 1850mm-2900mm | |||||
Portable Ready Mix Plant production line
The AGICO portable ready mix plant is usually composed of the following main systems:
batching system
→ Precisely measure materials such as sand, stone, and crushed stone.
Conveying system
→ Use belt or screw conveyors to transport the aggregates and powders into the mixer.
Mixing system
→ Forced mixing to achieve uniform mixture.
Weighing system
→ Precisely measure the cement, water and admixtures.
Control system
Realize production automation and data recording.
Comparison with stationary concrete batching plant
| Comparison Item | Portable Ready Mix Plant | Stationary Concrete Batching Plant |
|---|---|---|
| Installation Method | Modular mobile design, ready for production in 1–2 days | Requires concrete foundation, installation period 7–15 days |
| Transportation & Relocation | Towable and easy to move, fast site transfer | Needs disassembly and reinstallation |
| Application Scenarios | Roads, bridges, airports, short-term projects | Urban ready-mix plants, large-scale production bases |
| Production Capacity | 25–120 m³/h | 60–240 m³/h |
| Equipment Investment | $25,000–$150,000 | $35,000–$200,000 |
| Flexibility | High | Medium |
| Foundation Cost | Low | High |
| Automation Level | High (PLC control system) | High (centralized control system) |
Why choose AGICO
Price range
$25,000 – $150,000
Modular structure
Complete modular chassis
Installation time
1-2 days
Automation control
Fully automatic PLC system
Transportation method
Overall transfer by trailer
Customization capability
Supports customized projects for customers
After-sales network
Service points in 30+ countries worldwide
Return on investment period
Approximately 6–12 months
AGICO has always relied on stable quality, flexible configuration and global services as its core competitiveness. It has provided hundreds of sets of mobile mixing station systems for regions such as Southeast Asia, Africa, the Middle East and Latin America.
Portable Ready Mix Plant Application Scenarios
Highway and railway
In remote areas or during cross-segment construction, mobile concrete batching plants can be quickly deployed at the construction sites along the route to ensure the continuity of concrete supply.
Bridge and Tunnel Engineering
It is convenient to conduct on-site mixing at the bridgehead or tunnel entrance, reducing transportation time and loss.
Airport runways and port projects
Under the demand for continuous supply of high-strength concrete, the mobile station can rapidly expand production capacity.
Township construction project
No need for infrastructure construction, saving construction period and site area.
turnkey service
ONLINE NEGOTIATION
DEMAND
DESIGN
SIGN THE AGREEMENT
PREPAID
PRODUCTION
THE INSTALLATION
TRAINING
Future Prospects of Portable Ready Mix Plants
As the industrialization, intelligence and environmental protection trends in the construction industry become increasingly evident, portable ready mix plants are becoming the new favorite for global construction projects. The main future trends are as follows:
1. Lightweight and modular upgrades
New high-strength steel and structural optimization will further reduce the overall weight of the machine.
2. Intelligence and Remote Control
Utilize the IoT platform to achieve equipment operation monitoring, data upload, and predictive maintenance.
3. environmentally friendly technologies
Energy-saving motors, sealed dust removal, and wastewater recycling will become standard features.
4. Increasing demand for turnkey one-stop projects:
Customers are more inclined to choose suppliers like AGICO that offer full-process services from design to installation.
In the next 10 years, the annual growth rate of the mobile mixing station market is expected to exceed 6.5%. AGICO, with its mature technology and customization capabilities, will continue to lead the industry trend.
Cases of Portable Ready Mix Plant
Philippine Road Bureau Project
Using the YHZS50 mobile station, the daily output is 800 m³. The entire machine can be transported by only one trailer, saving approximately $10,000 in site costs.
Nigerian port expansion project
Two sets of YHZS75 mobile mixing stations were configured to enable 24-hour continuous pouring, reducing the construction period by 25%.
Tunnel project in the mountainous area of Chile
The project adopted the AGICO custom-made high-altitude YHZS35 equipment, which could start smoothly at low temperatures and achieved a customer satisfaction rate of up to 98%.
